Max Z SERIES

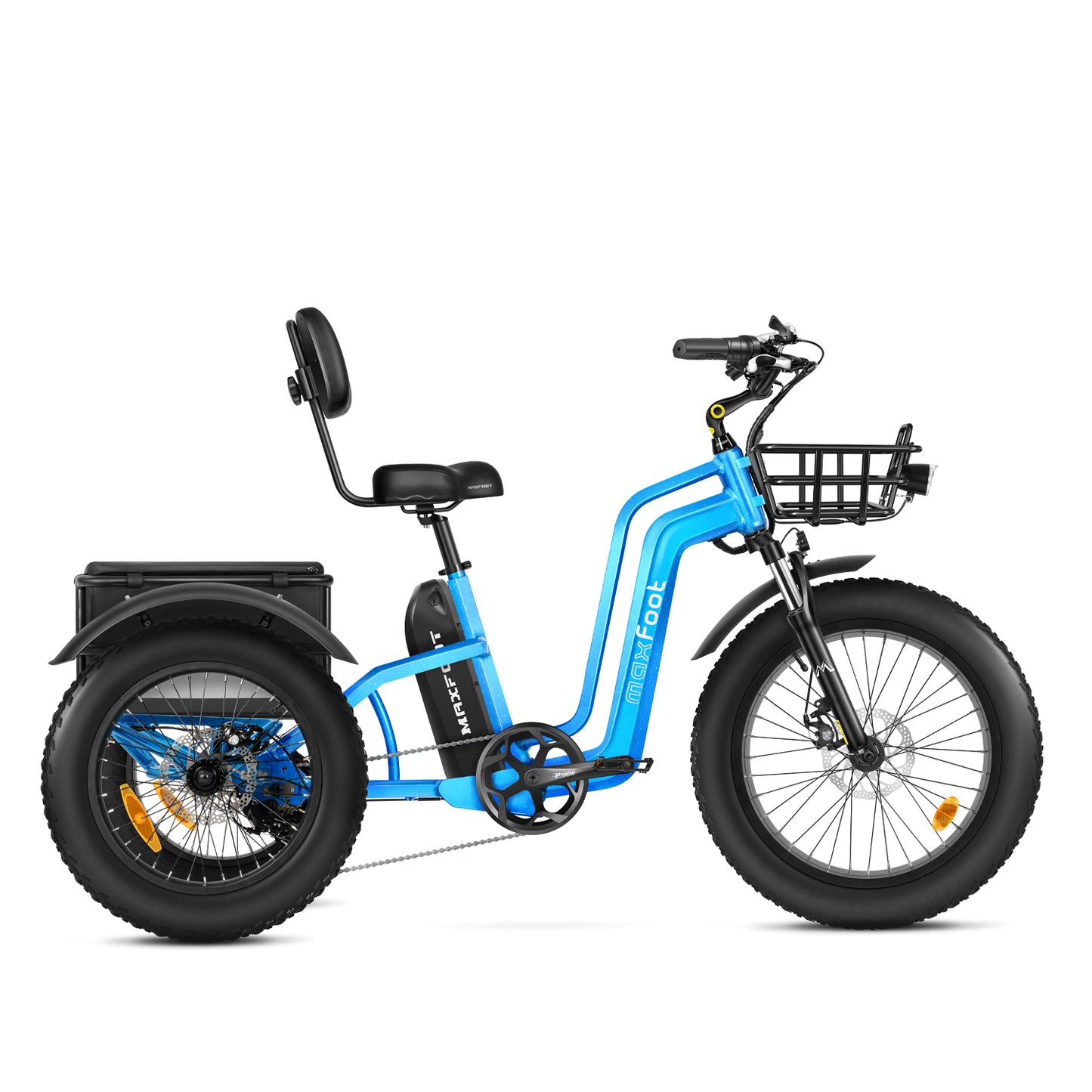

[750W] MaxZ 24" Step -Thru Electric Trike

[750W] MaxZ 24" Step -Thru Electric Trike

Regular price $9,999.00 USD
$9,999.00 USD Regular price Sale price
Sale Sold out
Shipping calculated at checkout.
Color
View full details

One-Piece Molding Frame

· The unconventional undulating and extending ridges show beauty and strength.

· The main body of the vehicle tube is formed in one piece and requires no welding.

MAXFOOT 750W
Rear Drive Motor

The MAXFOOT powerful motor provides the MF-32 with a rated power of 750W (peak power 1100W) and a powerful torque of 85N.m. In the new version in 2024, the position of the MF-32's motor has been changed to the rear wheel position. This means that the entire vehicle is driven by the two rear wheels, and the driving mode is changed from the original "pull" to "push". When riding on some special terrain, the front wheel will no longer slip. The MAXFOOT motor will work with the two rear wheels to easily push you forward. Free from terrain anxiety, your rides will be easier and more enjoyable.

High-Quality & High-Capacity Battery

With Ul Certification

Range Develop

Maxfoot 20Ah Battery



Sliver Battery


Quality Develop

Maxfoot 20Ah Battery



Sliver Battery


2 Color For Your Choice

Picton Blue

Pangea Green

Multifunctional Tail Light

In addition to the standard driving light and brake light functions, the MF-31's taillight also provides a turn signal function. With a reasonable key arrangement, you can light up the turn signal promptly and conveniently when you need to change lanes or turn while riding to remind the vehicle behind you. Ensure road safety for both parties.

Rear Differential

The differential exists to adjust the speed difference between the left and right wheels so that when the MF-31 is driving on uneven roads or turning, the left and right wheels can roll at different speeds. To achieve the purpose of ensuring the overall balance and safety of the tricycle when passing through special terrain or turning.

  • Integrated Control Buttons

    Various functional controls are integrated into one, clear and convenient.

  • USB Port

    Charge your phone anywhere when you need.

  • Parking Brake

    Keep your tricycle locked with the mechanical brake via the parking function.

  • Headlight

    Directly powered high-lumen headlight, illuminate the road ahead.

  • Integrated Horn

  • Rear Dual Disc Brake

    Effectively prevent rollover and protect riding safety.

1 of 6

Electronic

Battery

UL-Certified SAMSUNG 48V 20AH Lithium Battery

Motor

750W Brushless Geared Motor(Rear Drive)

Throttle

Variable Speed Control - 1/2 Twist Throttle

Display

Maxfoot 5 Inch LCD Display With USB Port

Controller

Maxfoot 25A Overall Waterproof Controller

Integrated Wiring

Water-Resistant Connectors and Wiring Harness

Lights

Integrated Headlight and Brake Light

Pedal Assist

Intelligent 5 level pedal assist With an integrated speed sensor

Mechanics

Frame

Front of frame: 6061 Aluminium-Alloy Frame Rear of frame: 7A19 Aluminium-Alloy Frame

Fork

Maxfoot 50mm Max Travel Suspension Fork

Chain Puller

Shimano 7 Speeds gear

Rotors

180mm Disc Brake (Front *1 / Rear *2)

Tire

20"

Brake levers

Dual power-off brake levers

Saddle

Thickened saddle with backrest

Fender

Aluminium-Alloy Fenders

Data

Charging Time

9-10 Hours. Depending On The Battery Status

N.W:/G.W:

90 lbs / 100 lbs

Range

85+ Miles with PAS 1

Max. Load Capacity

Electric Trike 350lbs + Rear Rack 100lbs

Battery Life

Rated For 800 Charge Cycles

Appropriate Height

5'2" - 6'4"
