[750W] Maxfoot MF-30 Electric Trike

2 sold in last 8 hours
MF307-A
16 In stock
Electric Bike
$2,599.00
Size Guide
Color :
Black
Dark Green
$2,599.00
Terms & conditions
customers are viewing this product

For Canadian/Mexican customers: please contact us for quoting shipping cost.

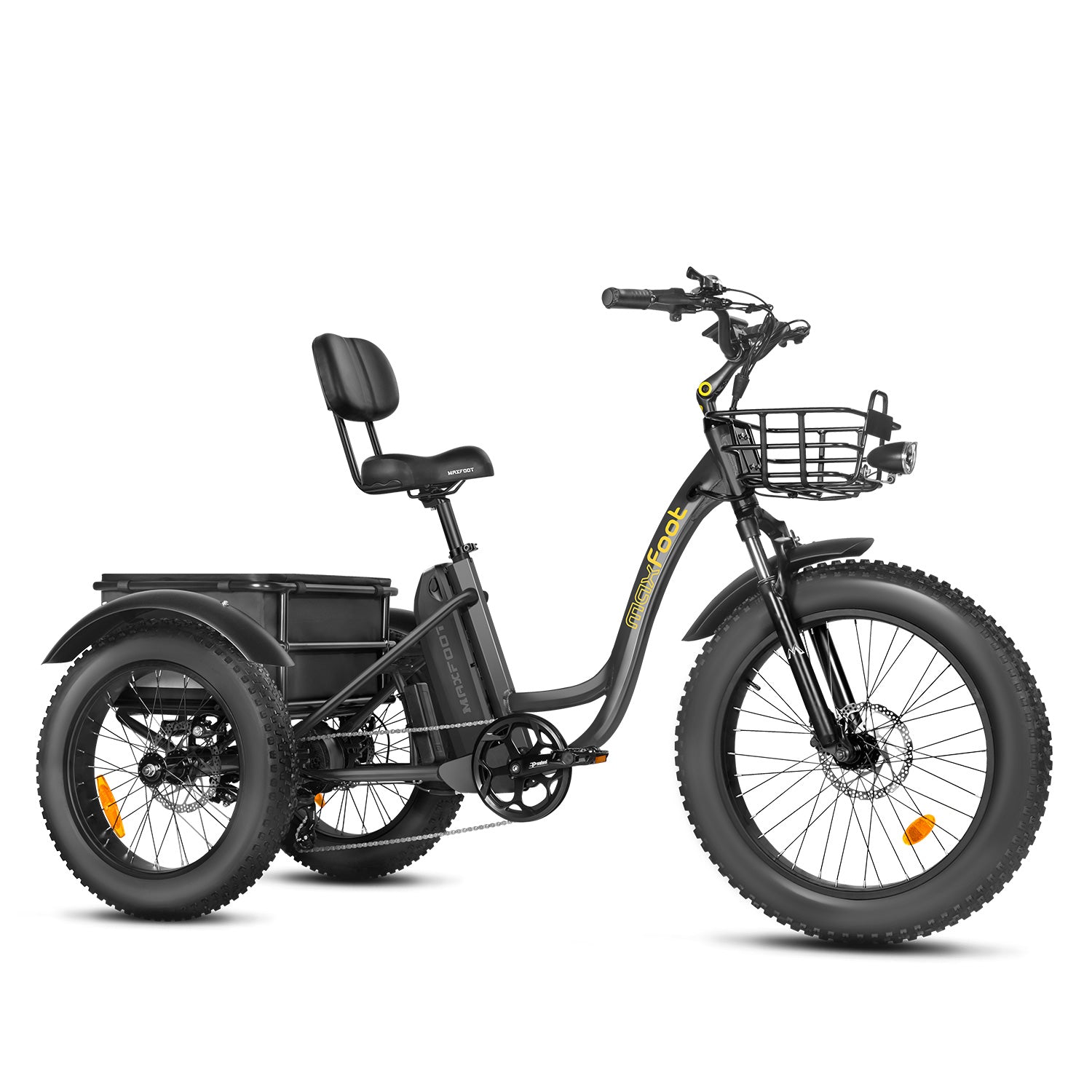

MF-30 E-Trike

Built For More Riders

The MF-30 electric cargo trike is a powerful electric trike that is the most affordable one with the same configuration on the market.
With a 750W high-torque motor and 50-65+ miles range of battery, you can feel the stability of 3 wheels and change your life.

750W

Front Hub Motor

85N.m

Motor Torque

48V -16 Ah

Lithium-lon Battery

350 lbs

Payload Capacity

Technical Specifications

  • Waterproof Rear Basket Bag

    Special waterproof bag for the rear basket, perfectly fits the rear basket, providing a large-capacity waterproof storage space of 48L.

  • Thick Comfortable Seat

    The uniquely designed thick padded saddle can improve riding comfort. With the backrest of the seat, you will get a comfortable riding experience.

  • Dual Disc Brake

    All wheels are equipped with 180mm disc brakes, which effectively prevents rollover. When you brake, the brake disc can be sensitively held tightly according to your needs.

  • Step-Thru Frame

    To build for more riders, the step-thru frame design is one of the key features of MF-30. Whatever who you are, you can span the frame and get on the trike easily.

  • Bafang 750W Hub Motor

    Bafang 750W high-torque motor provides MF-30 a powerful motivation. Its torque can reach 80N.m, means that it can pass through most terrains easily even there are many goods on your trike

  • Panasonic Lithium Battery

    Panasonic 48V 16Ah high capacity battery provide energy for the electrical part of MF-30,it can support MF-30 go around 50-65 miles ( with PAS 1 ).

Electronics

Battery

Panasonic 48V 16AH Lithium Battery

Hub Motor

750W Brushless Bafang Geared Hub Motor

Throttle

Variable Speed Control - 1/2 Twist Throttle

Display

Maxfoot 5 Inch LCD Display With USB Port

Controller

Maxfoot 25A Overall Waterproof Controller

Integrated Wiring

Water-Resistant Connectors and Wiring Harness

Lights

Integrated Headlight and Brake Light

Pedal Assist

Intelligent 5 level pedal assist With an integrated speed sensor

Mechanics

Frame

Front of frame: 6061 Aluminium-Alloy Frame
Rear of frame: 7A19 Aluminium-Alloy Frame

Fork

Maxfoot 50mm Max Travel Suspension Fork

Chain Puller

Shimano 7 Speeds gear

Rotors

180mm Disc Brake (Front *1 / Rear *2)

Tire

Front 24" / Rear 20"

Brake levers

Dual power-off brake levers

Saddle

Thickened saddle with backrest

Fender

Aluminium-Alloy Front Fender

Data

Charging Time

5-6 Hours. Depending On The Battery Status

N.W:/G.W:

90 lbs / 100 lbs

Range

50-65+ Miles with PAS 1

Max. Load Capacity

Electric Trike 350lbs + Rear Rack 100lbs

Battery Life

Rated For 800 Charge Cycles

Appropriate Height

5'2" - 6'4"

Size

Recommended Rider Heights

5'2"-6'3"

Frame Size

20"

Handlebar Height

44.3" - 46.5" (adjustable)

Standover Height

18"

Handlebar Reach

16"

Seat Height

33.5" - 40.5"
(Measured from bottom of the pedal stroke)

Total Length

74.5"

Total Width

34"

Seat Tube Length

12"

Seatpost Diameter

27.2 mm

Handlebar Width

27"

Crank Length

210 mm

Max Tire Width

4"

Bike Weight

84 lbs

Full Dimensions (LxW)

74.5" x 34"

Wheelbase

50"

Rear Fenders

Rearview Mirror

Accessories For The Trike

Abundant optional accessories can fully enhance your riding experience
