MaxFoot Electric Bike

[750W] 24" MF-23 Cruiser Electric Bike

[750W] 24" MF-23 Cruiser Electric Bike

Regular price $1,449.00 USD
$1,449.00 USD Regular price $1,599.00 USD Sale price
Sale Sold out
Shipping calculated at checkout.
For riders: 5'2" - 6'3"
In Stocks: Ready to ship



Color
Red
Green
View full details

Redefine the Electric Cruiser Bike

The Revolutionary Fat Tire Cruiser Electric Bike.

Packed with More Advanced Electrical and Machine Innovations.

48V -20Ah

Lithium-lon Battery

750W

Rear Hub Motor

85N.m

Motor Torque

300 lbs

Payload Capacity

MAXFOOT
750W Motor

The high-speed continuous 750W (peaking to 1100W) brushless geared hub motor with 85 Nm of max torque, which gives you a maximum power and be unstoppable on bad terrains. We’d love to let you feel the passion and enjoy the pleasure of cycling!

750W

Motor Power

85N.m

Motor Torque

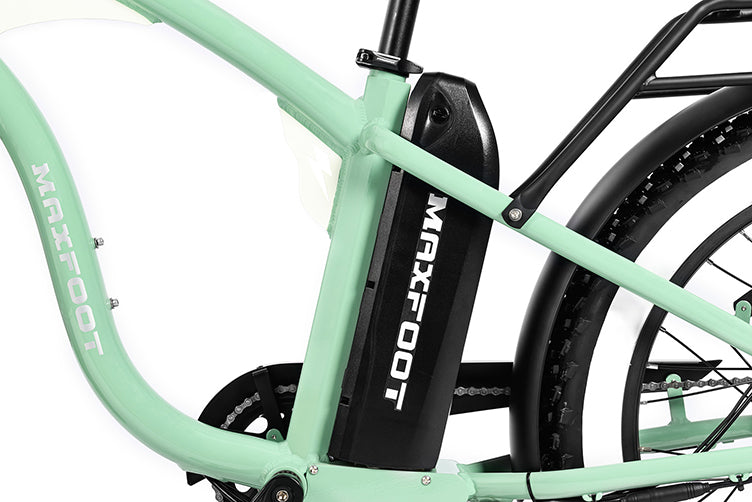

48V 20Ah Battery

MF-23 is equipped with the 48V 20Ah Battery from SAMSUNG and passed the UL 2271 certification. It ensures battery safety and other quality issues to the greatest extent. High-quality and high-capacity cells provide up to 85 miles of riding range.

Maxfoot 750W Hub Motor

The motor of MF-23 is Maxfoot motor developed by Maxfoot and a well-known manufacturer. While guaranteeing the quality of the motor, it also improves the performance of the motor. At a rated power of 750W, the Maxfoot motor can output at least 1050W of power. There will be no security risks due to its high performance.

Hidden wiring

The wiring of MF-23 is hidden wiring, hidden in the frame with a unique design. Make the overall appearance of the vehicle even more beautiful. At the same time, hidden wiring also greatly reduces the exposure of the wires and prevents the wires from being damaged due to external factors.

Thoughtful Big Curved Handlebar

Curved Handlebar aluminum handlebars allow adjustment to support various arm lengths and a more laid back riding position. During riding, the curved handlebar allows the rider to ride in a comfortable position. you will not feel uncomfortable because of the sitting position even when traveling long distances.

Integrated Headlight and Taillight

The integrated power supply headlight and taillight provide guarantee for safe riding all day long. The headlight angle can be adjusted according to actual riding conditions to meet the needs of different road conditions. In addition to being always on, the taillight also have a brake highlight function, which can alert vehicles behind you in advance when slowing down.

Seat bag with Reflector

The surface of the MF-23 seat bag has concave and convex patterns set according to ergonomics to reduce the rider's fatigue during riding.The rear of the seat bag is also equipped with a reflector, which can use the light from back to remind the car behind, which is another important safety guarantee in addition to the taillights.

Electronics

Battery

SAMSUNG 48V 20Ah Lithium Battery

Hub Motor

750W Brushless Geared Hub Motor

Throttle

Variable Speed Control - 1/2 Twist Throttle

Display

Maxfoot 5 Inch LCD Display With USB Port

Controller

Maxfoot 25A Overall Waterproof Controller

Integrated Wiring

Water-Resistant Connectors and Wiring Harness

Lights

Integrated Head/Rear Light

Torque

85N.m

Mechanics

Frame

6061 Aluminium-Alloy Frame

Suspension

80-100mm of Travel Front Fork Suspension

Brake Lever

Mechanical EL555-RT/EL550-RS

Rotors

180mm F/R Alloy Disc Brake

Tire

DURABLE 24" x 4.0" Tire

Chain Puller

Shimano M-310 derailleur & 7 Speeds gear

Data

Charging Time

9-10 Hours

N.W:/G.W:

70 lbs / 82 lbs

Range

45-55 Miles with PAS 1

Max. Load Capacity

300 lbs

Battery Life

Rated For 800 Charge Cycles

Frame Size

24"

Appropriate Height

5'4"-6'3"
