[750W] MaxZ 20" Step -Thru Electric Trike
[750W] MaxZ 20" Step -Thru Electric Trike
Regular price
$2,399.00 USD
$2,399.00 USD
Regular price
$2,599.00 USD
Sale price
Unit price
per
Shipping calculated at checkout.
IN STOCK: Shipped in 2 Business Days
Couldn't load pickup availability
One-Piece Molding Frame
· The unconventional undulating and extending ridges show beauty and strength.
· The main body of the vehicle tube is formed in one piece and requires no welding.
MAXFOOT 750W
Rear Drive Motor
The MAXFOOT powerful motor provides the MAXZ 20'' with a rated power of 750W (peak power 1100W) and a powerful torque of 85N.m. In the new version in 2024, the position of the MAXZ 20's motor has been changed to the rear wheel position. This means that the entire vehicle is driven by the two rear wheels, and the driving mode is changed from the original "pull" to "push". When riding on some special terrain, the front wheel will no longer slip. The MAXFOOT motor will work with the two rear wheels to easily push you forward. Free from terrain anxiety, your rides will be easier and more enjoyable.
High-Quality & High-Capacity Battery
With Ul Certification
Range Develop
Quality Develop
2 Color For Your Choice

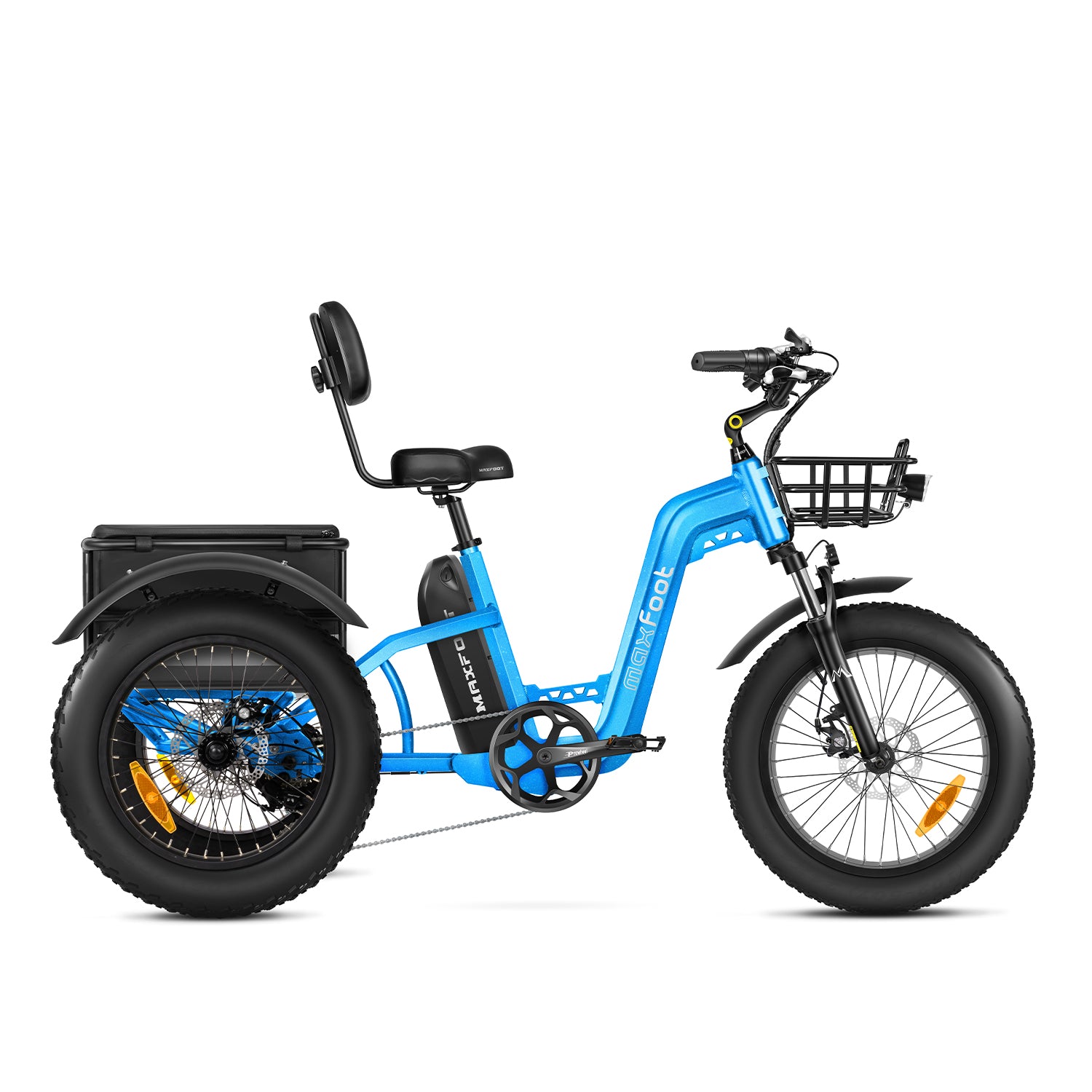

Picton Blue

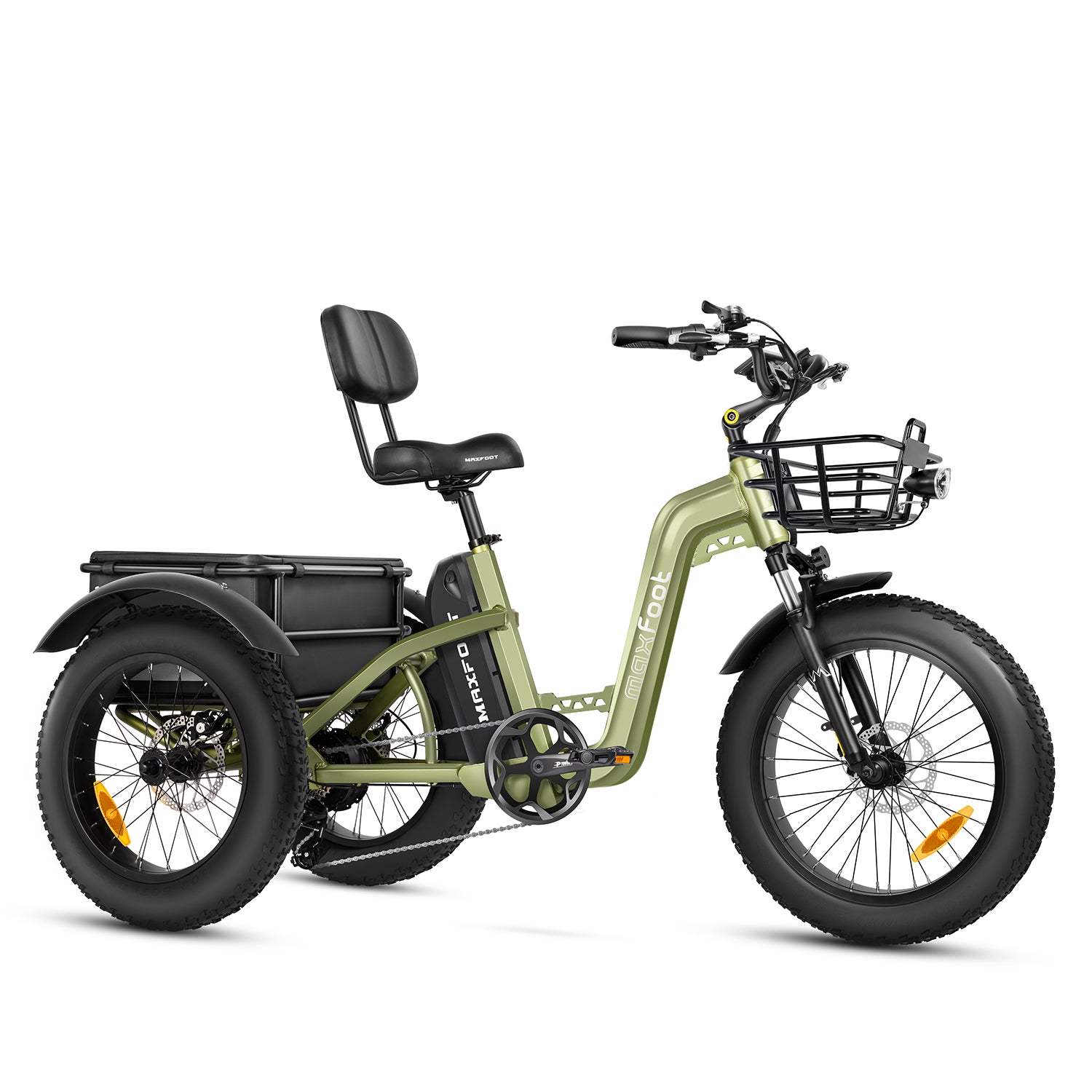

Pangea Green
Multifunctional Tail Light
In addition to the standard driving light and brake light functions, the MAXZ 20's taillight also provides a turn signal function. With a reasonable key arrangement, you can light up the turn signal promptly and conveniently when you need to change lanes or turn while riding to remind the vehicle behind you. Ensure road safety for both parties.
Rear Differential
The differential exists to adjust the speed difference between the left and right wheels so that when the MAXZ 20'' is driving on uneven roads or turning, the left and right wheels can roll at different speeds. To achieve the purpose of ensuring the overall balance and safety of the tricycle when passing through special terrain or turning.
Features
-

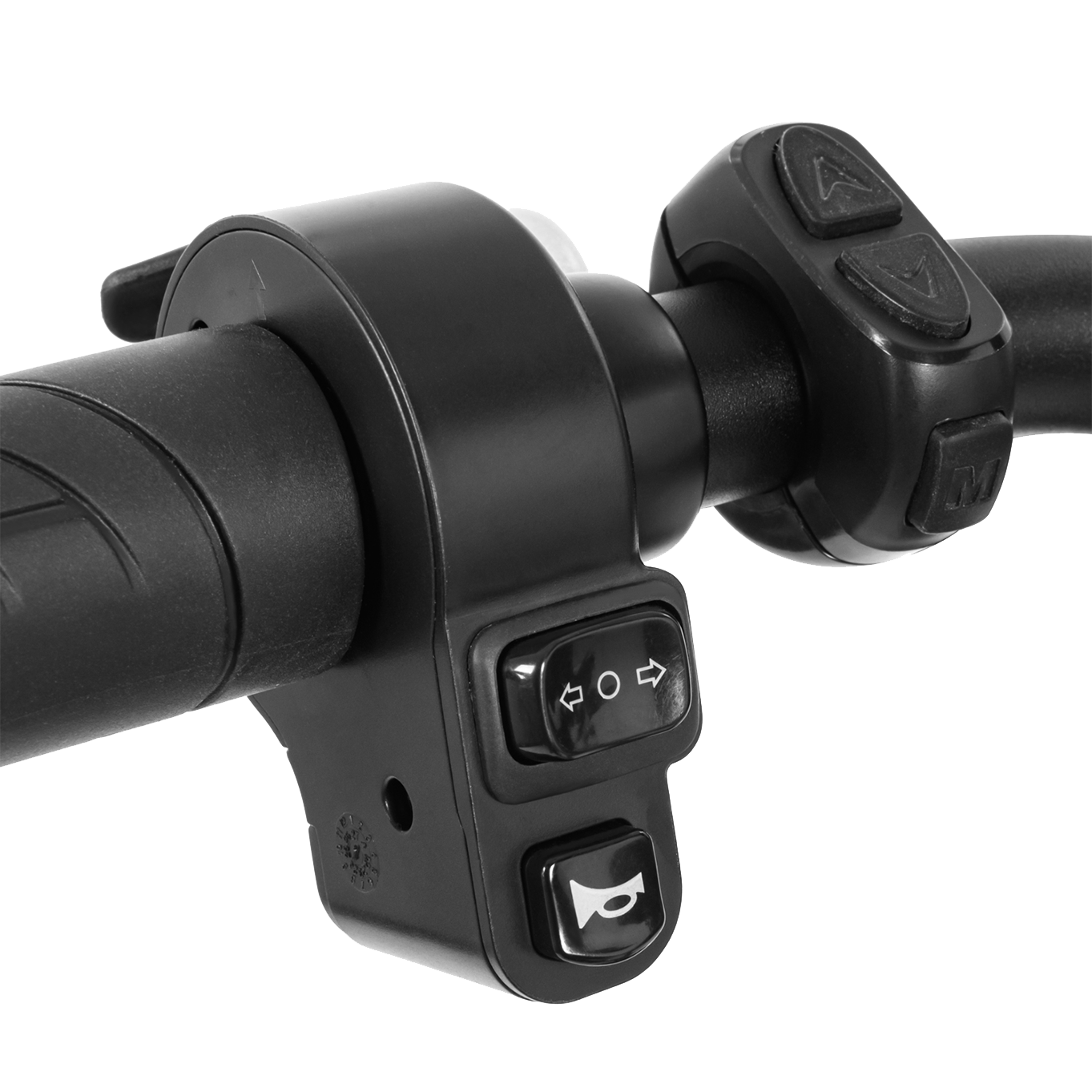

Integrated Control Buttons
Various functional controls are integrated into one, clear and convenient.
-

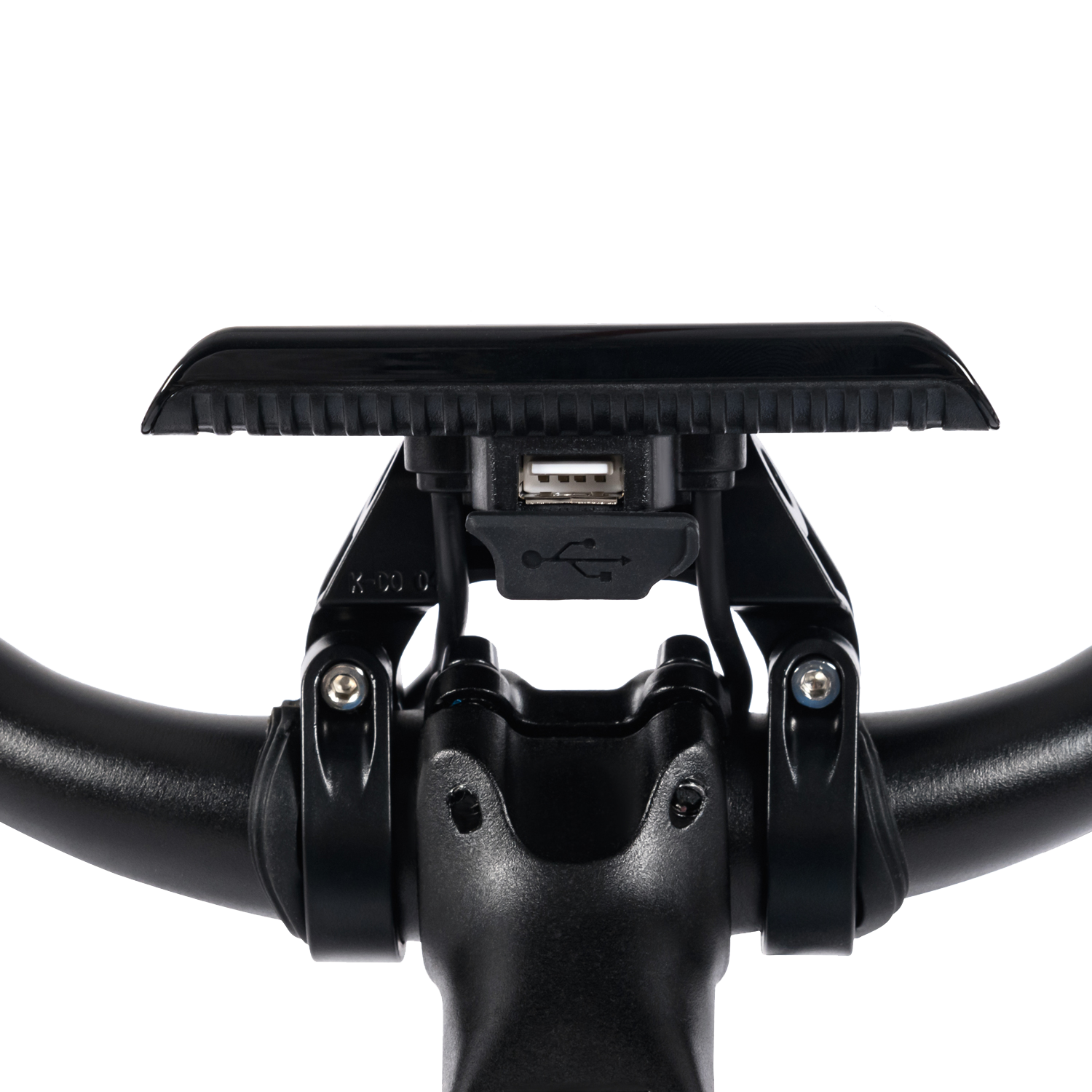

USB Port
Charge your phone anywhere when you need.
-

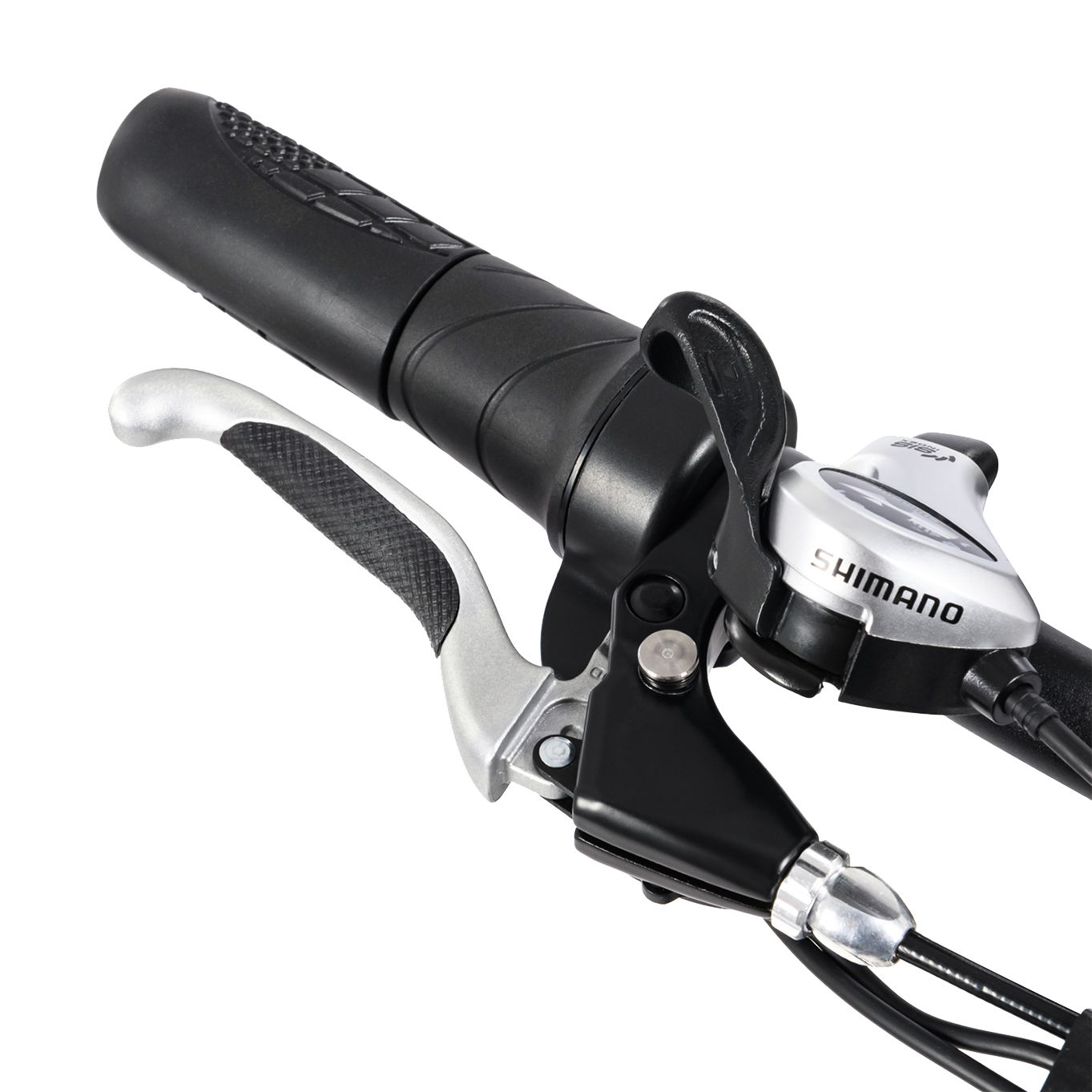

Parking Brake
Keep your tricycle locked with the mechanical brake via the parking function.
-

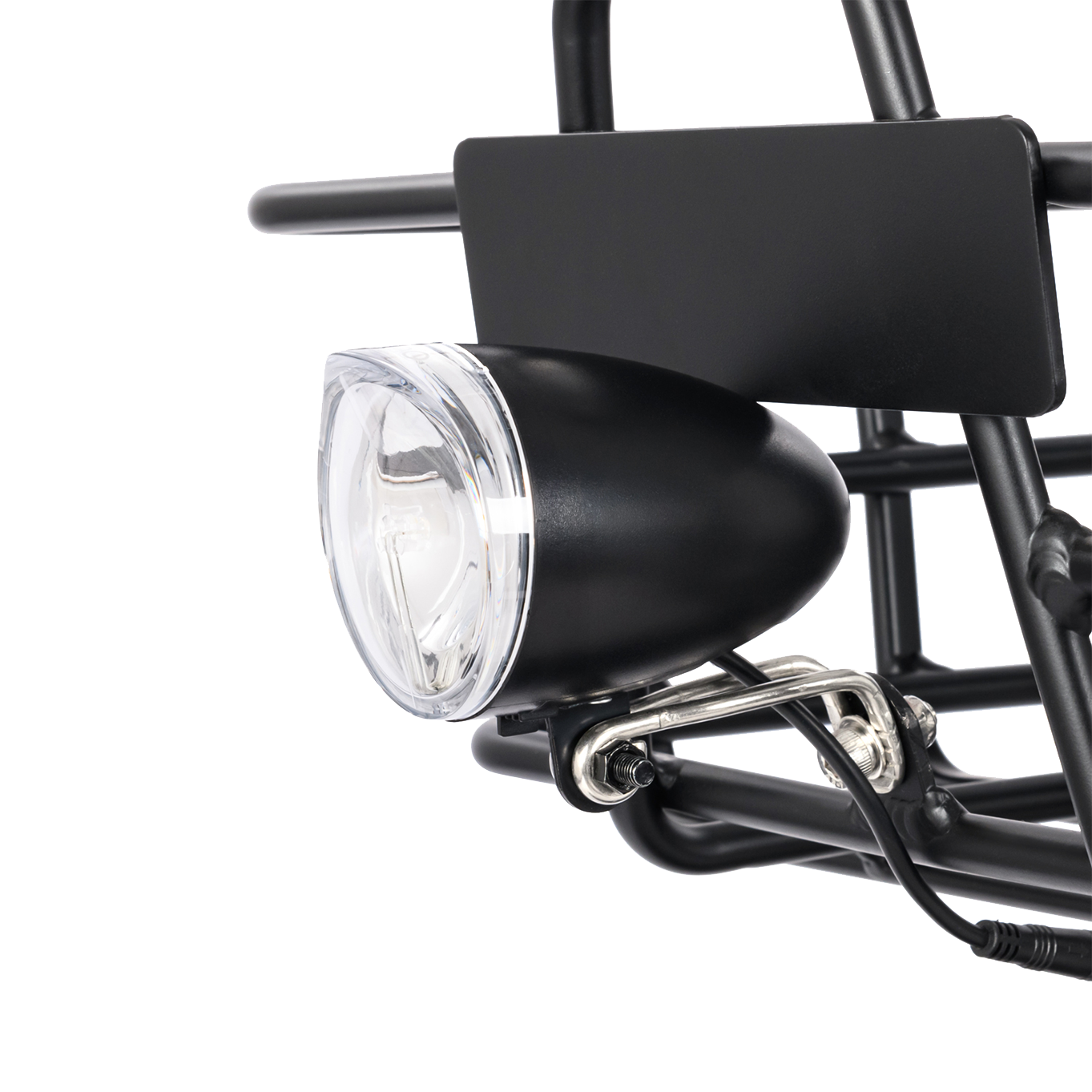

Headlight
Directly powered high-lumen headlight, illuminate the road ahead.
-

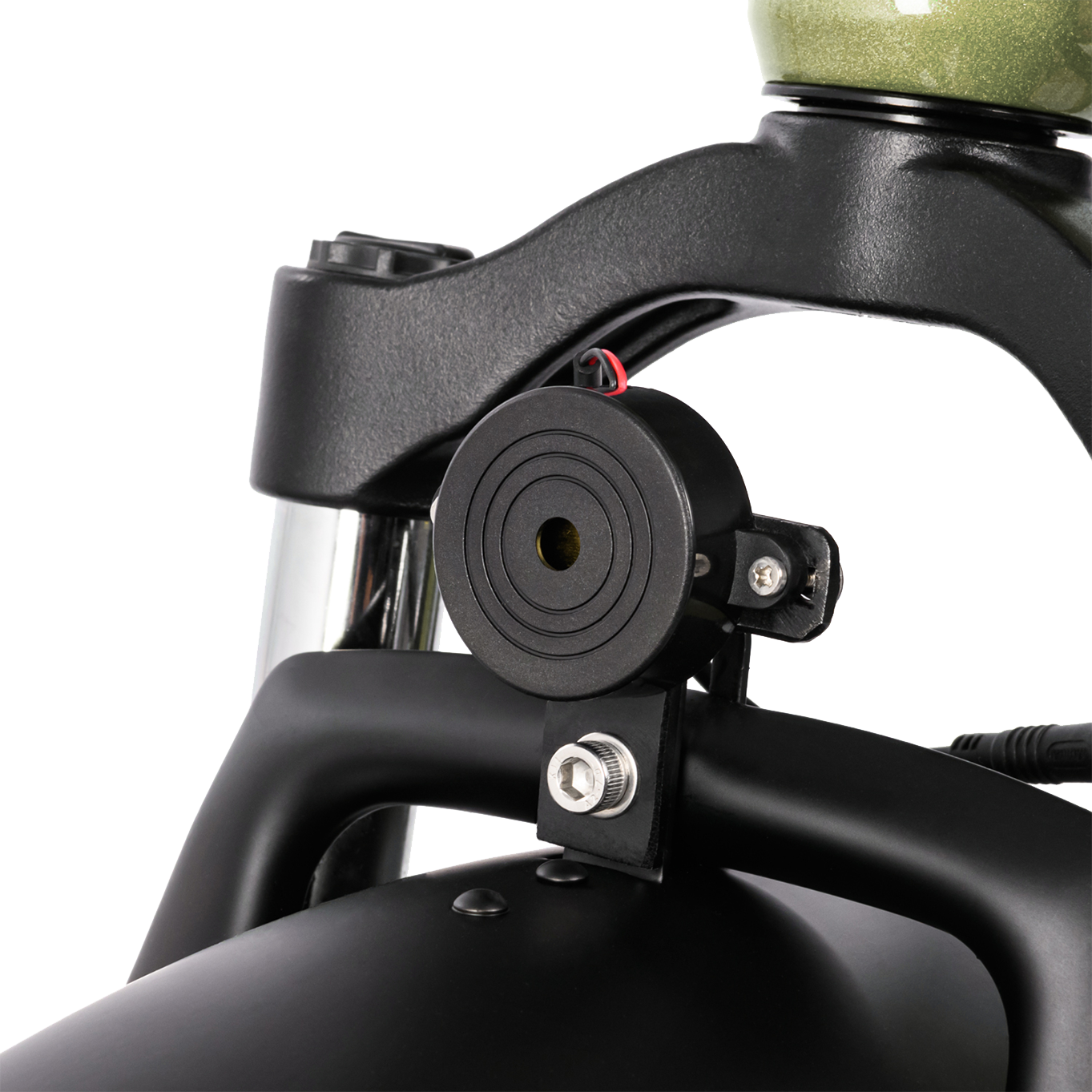

Integrated Horn
Electronic horn alerts other road traffic participants at a more appropriate volume.
-

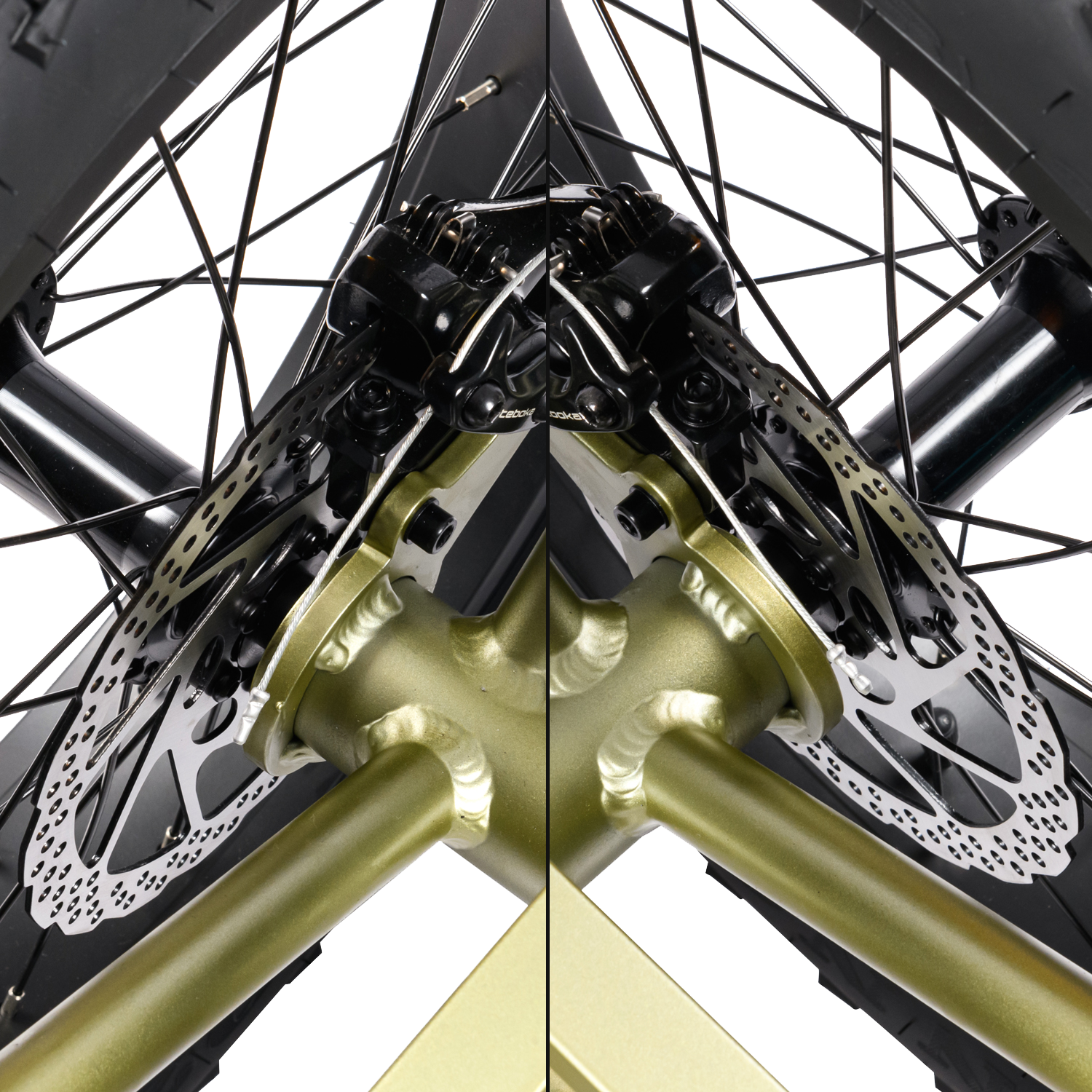

Rear Dual Disc Brake
Effectively prevent rollover and protect riding safety.
Electronic
UL-Certified SAMSUNG 48V 20AH Lithium Battery
Motor
750W Brushless Geared Motor(Rear Drive)
Throttle
Variable Speed Control - 1/2 Twist Throttle
Display
Maxfoot 5 Inch LCD Display With USB Port
Controller
Maxfoot 25A Overall Waterproof Controller
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Lights
Integrated Headlight and Brake Light
Pedal Assist
Intelligent 5 level pedal assist With an integrated speed sensor
Mechanics
Frame
Front of frame: 6061 Aluminium-Alloy Frame Rear of frame: 7A19 Aluminium-Alloy Frame
Fork
Maxfoot 50mm Max Travel Suspension Fork
Chain Puller
Shimano 7 Speeds gear
Rotors
180mm Disc Brake (Front *1 / Rear *2)
Tire
20"
Brake levers
Dual power-off brake levers
Saddle
Thickened saddle with backrest
Fender
Aluminium-Alloy Fenders
Data
Charging Time
9-10 Hours. Depending On The Battery Status
N.W:/G.W:
90 lbs / 100 lbs
Range
85+ Miles with PAS 1
Max. Load Capacity
Electric Trike 350lbs + Rear Rack 100lbs
Battery Life
Rated For 800 Charge Cycles
Appropriate Height
5'2" - 6'4"
